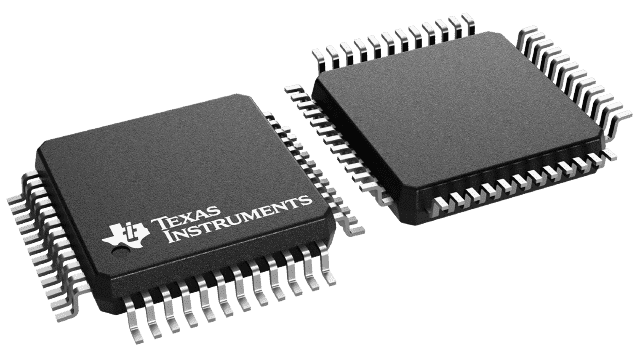

VSP2566PT Texas Instruments - Yeehing Electronics

16-bit, 36 MSPS 1-Channel AFE for CCD Sensors with Two 8-bit DACs

Pricing (USD)

Quantity	Unit Price
1 — 99	22.463
100 — 249	19.621
250 — 999	15.129
1,000 +	9.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Front End - AFE
RoHS	Y
Series	VSP2566
Type	CCD AFE
Resolution	16 bit
Sampling Rate	36 MS/s
Number of Channels	1 Channel
Interface Type	Serial
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LQFP-48
Packaging	Tray
Height	1.4 mm
Length	7 mm
Number of Converters	1 Converter
Width	7 mm
Brand	Texas Instruments
Number of ADC Inputs	6 Input
Operating Supply Voltage	3 V
Product Type	Analog Front End - AFE
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.006409 oz

For more information, please refer to datasheet

Documents

VSP2566PT Datasheet

More Information

The VSP2560/62/66 are a family of complete mixed-signal processing ICs for digital cameras that provide correlated double sampling (CDS) and analog-to-digital conversion for the output of CCD arrays. The CDS extracts the pixel video information from the CCD signal, and the analog-to-digital converter (ADC) converts the digital signal. For varying illumination conditions, a very stable gain control of - dB to 44 dB is provided. The gain control is linear in dB. Input signal clamping and offset correction of the input CDS are also provided.
