Texas Instruments
VSP5612RSHR
VSP5612RSHR
Regular price
$3.71 USD
Regular price
Sale price
$3.71 USD
Unit price
per
Couldn't load pickup availability
VSP5612RSHR Texas Instruments - Yeehing Electronics
16 bit, 70MSPS Four Channel Imaging Analog Front End
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.754 |
| 100 — 249 | 7.952 |
| 250 — 999 | 6.25 |
| 1,000 + | 3.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | VSP5612 |
| Type | CCD AFE |
| Resolution | 16 bit |
| Sampling Rate | 70 MS/s |
| Interface Type | Serial |
| Supply Voltage - Max | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

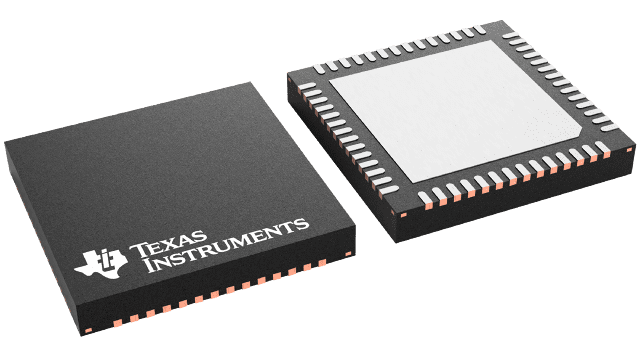

| Package / Case | VQFN-56 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 542 mW |
| Product Type | Analog Front End - AFE |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.007055 oz |
For more information, please refer to datasheet
Documents
| VSP5612RSHR Datasheet |
More Information
The VSP5610/11/12 are high-speed, high-performance, 16-bit analog-to-digital-converters (ADCs) that have four independent sampling circuit channels for multi-output charge-coupled device (CCD) and complementary metal oxide semiconductor (CMOS) line sensors. Pixel data from the sensor are sampled by the sample/hold (SH) or correlated double sampler (CDS) circuit, and are then converted to digital data by an ADC. Data output is selectable in low-voltage differential signaling (LVDS) or CMOS modes.
