Texas Instruments
WL1831MODGBMOCT
WL1831MODGBMOCT
Regular price
$7.13 USD
Regular price
Sale price
$7.13 USD
Unit price
per
Couldn't load pickup availability
WL1831MODGBMOCT Texas Instruments - Yeehing Electronics

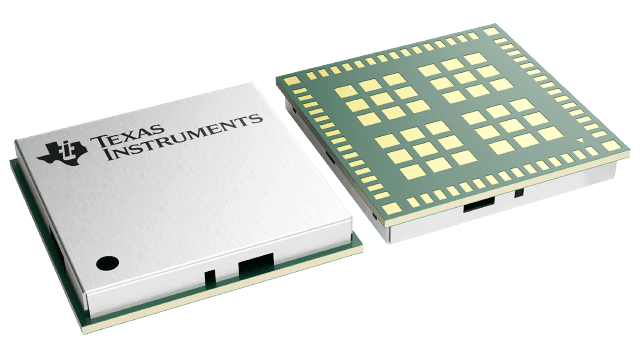

WiLink™ 8 industrial Wi-Fi, Bluetooth & Bluetooth Smart (Low energy) module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.912 |
| 100 — 249 | 14.773 |
| 250 — 999 | 11.39 |
| 1,000 + | 7.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | WiFi Modules (802.11) |
| RoHS | Y |
| Frequency | 2.4 GHz |
| Data Rate | 100 Mb/s |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Series | WL1831MOD |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | WiFi Modules |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Modules |
| Tradename | WiLink |
For more information, please refer to datasheet
Documents
| WL1831MODGBMOCT Datasheet |
More Information
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi® and Bluetooth® coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
