Texas Instruments
WL1835MODGBMOCR
WL1835MODGBMOCR
Regular price
$6.99 USD
Regular price
Sale price
$6.99 USD
Unit price
per
Couldn't load pickup availability
WL1835MODGBMOCR Texas Instruments - Yeehing Electronics

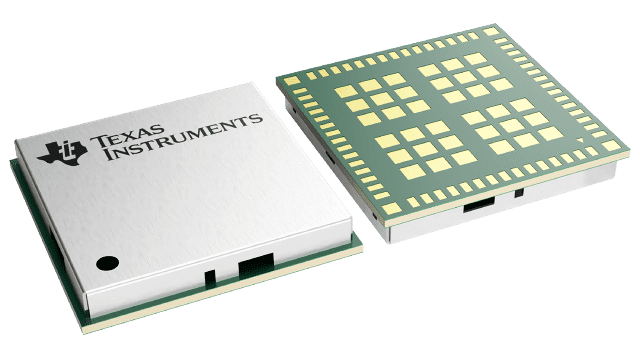

WiLink™ 8 single band combo 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.583 |
| 100 — 249 | 14.486 |
| 250 — 999 | 11.169 |
| 1,000 + | 6.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | WiFi Modules (802.11) |
| RoHS | E |
| Protocol Supported | 802.11 a/b/g/n, Bluetooth |
| Frequency | 2.4 GHz |
| Data Rate | 100 Mb/s |
| Interface Type | SDIO, UART |
| Output Power | 13.5 dBm, 17.3 dBm |
| Operating Supply Voltage | 3.7 V |
| Supply Current Transmitting | 420 mA |
| Supply Current Receiving | 85 mA |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 70 C |
| Dimensions | 13.4 mm x 13.3 mm x 2 mm |
| Packaging | Reel |
| Series | WL1835MOD |
| Brand | Texas Instruments |
| Antenna Connector Type | Integrated |
| Modulation Technique | CCK, DSSS, OFDM |
| Moisture Sensitive | Yes |
| Product Type | WiFi Modules |
| Factory Pack Quantity | 1200 |
| Subcategory | Wireless & RF Modules |
| Tradename | WiLink |
For more information, please refer to datasheet
Documents
| WL1835MODGBMOCR Datasheet |
More Information
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi® and Bluetooth® coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
