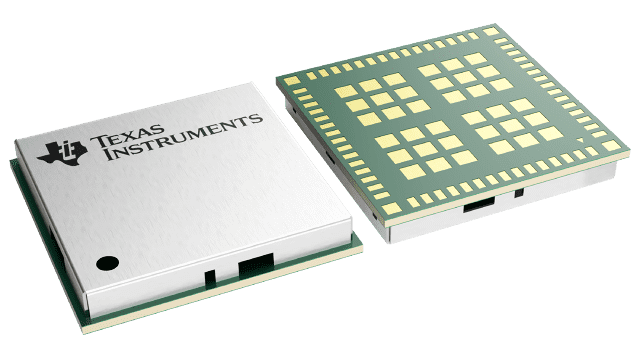

WL1837MODGIMOCR


YeeHing #: Y016-WL1837MODGIMOCR
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

WL1837MODGIMOCR Texas Instruments - Yeehing Electronics

WiLink™ 8 industrial dual band, 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module

Pricing (USD)

Quantity Unit Price
1 — 99 24.465
100 — 249 21.746
250 — 999 17.877
1,000 + 15.09

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category WiFi Modules (802.11)
RoHS E
Protocol Supported 802.11 a/b/g/n, Bluetooth
Frequency 2.4 GHz, 5 GHz
Data Rate 100 Mb/s
Interface Type SDIO, UART
Output Power 18 dBm
Operating Supply Voltage 2.9 V to 4.8 V
Supply Current Transmitting 324 mA
Supply Current Receiving 77 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Dimensions 13.3 mm x 13.4 mm x 2 mm
Packaging Reel
Series WL1837MOD
Brand Texas Instruments
Antenna Connector Type Chip
Modulation Technique CCK, DSSS, OFDM
Moisture Sensitive Yes
Product Type WiFi Modules
Factory Pack Quantity 1200
Subcategory Wireless & RF Modules
Tradename WiLink

For more information, please refer to datasheet

Documents

WL1837MODGIMOCR Datasheet

More Information

The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi® and Bluetooth® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
