Texas Instruments
WL1837MODGIMOCT
WL1837MODGIMOCT
Regular price
$12.59 USD
Regular price
Sale price
$12.59 USD
Unit price
per
Couldn't load pickup availability

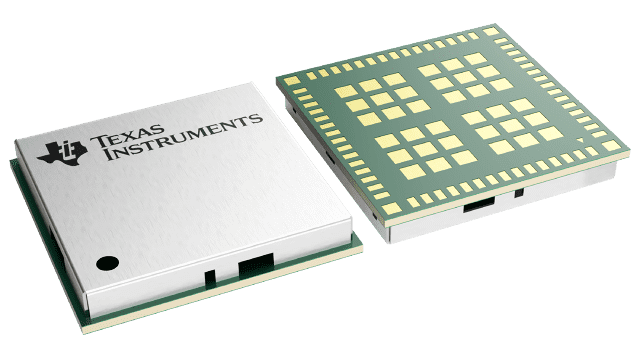

WL1837MODGIMOCT Texas Instruments - Yeehing Electronics
WiLink™ 8 industrial dual band, 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 27.525 |
| 100 — 249 | 24.466 |
| 250 — 999 | 20.113 |
| 1,000 + | 12.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | WiFi Modules (802.11) |
| RoHS | Y |
| Protocol Supported | 802.11 a/b/g/n, Bluetooth |
| Frequency | 2.4 GHz, 5 GHz |
| Data Rate | 100 Mb/s |
| Interface Type | SDIO, UART |
| Output Power | 18 dBm |
| Operating Supply Voltage | 2.9 V to 4.8 V |
| Supply Current Transmitting | 324 mA |
| Supply Current Receiving | 77 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dimensions | 13.3 mm x 13.4 mm x 2 mm |
| Packaging | Reel |
| Series | WL1837MOD |
| Brand | Texas Instruments |
| Antenna Connector Type | Chip |
| Modulation Technique | CCK, DSSS, OFDM |
| Moisture Sensitive | Yes |
| Product Type | WiFi Modules |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Modules |
| Tradename | WiLink |
For more information, please refer to datasheet
Documents
| WL1837MODGIMOCT Datasheet |
More Information
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi® and Bluetooth® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
