Texas Instruments
XIO2001ZAJ
XIO2001ZAJ
Regular price
$1.86 USD
Regular price
Sale price
$1.86 USD
Unit price
per
Couldn't load pickup availability

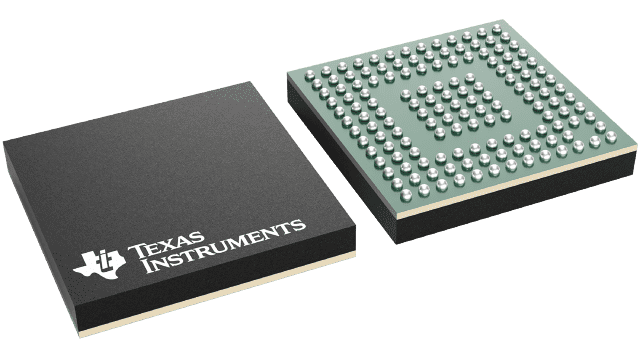

XIO2001ZAJ Texas Instruments - Yeehing Electronics
PCI Express® (PCIe®) to PCI bus translation bridge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.898 |
| 100 — 249 | 3.993 |
| 250 — 999 | 3.138 |
| 1,000 + | 1.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | PCI Interface IC |
| RoHS | Y |
| Type | Bridge - PCIe to PCI |
| Maximum Clock Frequency | 66 MHz |
| Number of Lanes | 1 Lane |
| Operating Supply Voltage | 3.3 V, 1.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-144 |
| Packaging | Tray |
| Data Rate | 2 Gb/s |
| Series | XIO2001 |
| Brand | Texas Instruments |
| Data Bus Width | 32 bit |
| Development Kit | XIO2001EVM |
| Moisture Sensitive | Yes |
| Product Type | PCI Interface IC |
| Factory Pack Quantity | 260 |
| Subcategory | Interface ICs |
| Unit Weight | 0.003838 oz |
For more information, please refer to datasheet
Documents
| XIO2001ZAJ Datasheet |
More Information
The XIO2001 is a single-function PCI Express to PCI translation bridge that is fully compliant to the PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. For downstream traffic, the bridge simultaneously supports up to eight posted and four non-posted transactions. For upstream traffic, up to six posted and four non-posted transactions are simultaneously supported.
