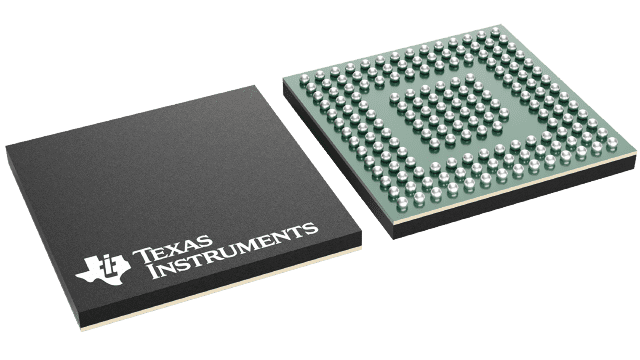

XIO2221ZAY Texas Instruments - Yeehing Electronics
PCI Express™ to 1394b OHCI with 1-port PHY
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.629 |
100 — 249 | 9.284 |
250 — 999 | 7.159 |
1,000 + | 4.48 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | PCI Interface IC |
RoHS | Y |
Type | Bridge - PCIe to PCI |
Operating Supply Voltage | 1.35 V to 3.6 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Mounting Style | SMD/SMT |
Package / Case | nFBGA-167 |
Packaging | Tray |
Data Rate | 800 Mb/s |
Series | XIO2221 |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | PCI Interface IC |
Factory Pack Quantity | 160 |
Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
XIO2221ZAY Datasheet |
More Information
The TI XIO2221 is a PCIe to PCI translation bridge, where the PCI bus interface is internally connected to a 1394b open host controller/link-layer controller with a 1-port 1394b PHY. The PCIe to PCI translation bridge is fully compatible with the PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. Also, the bridge supports the standard PCI-to-PCI bridge programming model. The 1394b OHCI controller function is fully compatible with IEEE Std 1394b and the latest 1394 Open Host Controller Interface (OHCI) Specification.
