Texas Instruments

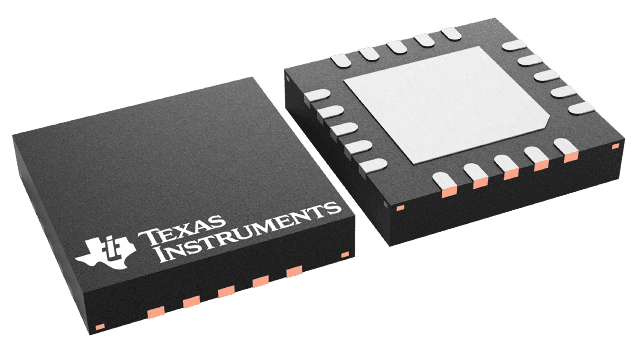

XTR300AIRGWR
XTR300AIRGWR
Regular price
$1.29 USD
Regular price
Sale price
$1.29 USD
Unit price
per
Couldn't load pickup availability
XTR300AIRGWR Texas Instruments - Yeehing Electronics
Industrial Analog Current/Voltage Output Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.723 |
| 100 — 249 | 3.262 |
| 250 — 999 | 2.287 |
| 1,000 + | 1.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Sensor Interface |
| RoHS | Y |
| Supply Voltage - Max | 40 V |
| Supply Voltage - Min | 10 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 5 mm |
| Series | XTR300 |
| Width | 5 mm |
| Brand | Texas Instruments |
| Development Kit | XTR300EVM |
| Ib - Input Bias Current | 0.035 uA |
| Moisture Sensitive | Yes |
| Product Type | Sensor Interface |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| XTR300AIRGWR Datasheet |
More Information
The XTR300 is a complete output driver for industrial and process control applications. The output can be configured as current or voltage by the digital I/V select pin. No external shunt resistor is required. Only external gain-setting resistors and a loop compensation capacitor are required.
